Elsema 151Mini Antenna Only
$21.95
Out of stock
Elsema 151Mini – Compact 151MHz SMA Antenna (19 cm)
The Elsema 151Mini is a highly compact 19 cm antenna engineered for use in portable and space-constrained 151 MHz systems. Designed for handheld transmitters, remote modules, or any 151 MHz equipment requiring a small, reliable antenna, the 151Mini balances performance and durability in a minimal form factor.
Includes:
- 1 x 155MHz mini antenna with SMA connection
Note: This does not include the coaxial cable or bracket.
Key Features:
- Tuned for 151 MHz Band — 150.50 to 153.00 MHz operation
- Compact Length — Just 19 cm for portable and tight installations
- SMA Termination (Standard) — Secure SMA interface, convertible to PL259 via adapter
- Flexible Rubber Construction — Resilient to bending, durable in use

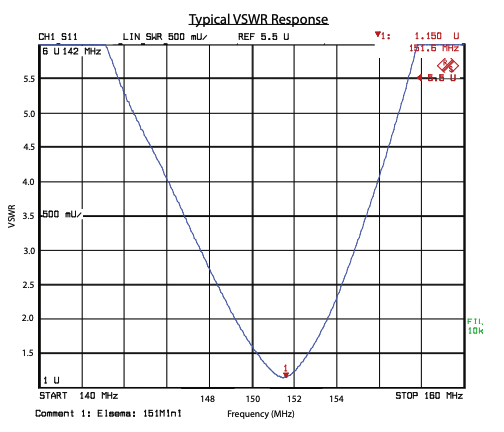

- Low VSWR (<1.5:1) — Efficient performance across its tuned span
- Omni-Directional Radiation — Uniform 360° signal coverage
- Max Power Handling — Up to 5 W transmit power
- Lightweight Design — Weighs approximately 12 grams
Ideal Applications:
- Remote Control & Automation – extend range for gates, doors, and access systems
- Industrial Automation – reliable communication for monitoring and control systems
- IoT & Wireless Networking – long-range connectivity for smart devices and sensors
- Telemetry & Monitoring – secure and stable signal for data transmission systems

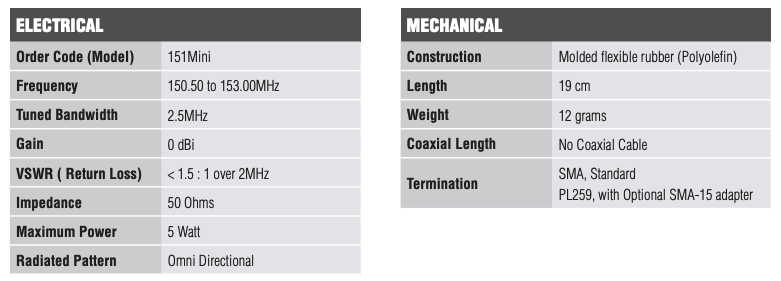

Technical Specifications:
| Frequency | 150.50 to 153.00 MHz |
| Tuned Bandwidth | 2.5MHz |
| Gain | 0 dBi |
| VSWR (Return Loss) | < 1.5 : 1 over 2MHz |
| Impedance | 50 Ohms |
| Maximum Power | 5 Watt |
| Radiated Pattern | Omni Directional |
| Construction | Molded flexible rubber (Polyolefin) |
| Length | 19cm |
| Weight | 12 grams |
| Coaxial Length | No Coxial Cable |
| Termination | SMA, Standard |
| Warranty | 12 Months Manufacturers Warranty |
