Elsema Multicode MCT91501 Remote with Cover and Battery

Elsema MCT91501 915MHz Multicode 1 Button Remote

The Elsema MCT91501 is a genuine 1-button 915MHz Multicode transmitter designed for reliable single-function remote control in commercial, industrial and automation applications.

Using Elsema’s Multicode Technology (MCT) and Frequency Hopping Spread Spectrum, the MCT91501 provides reliable operation in environments where interference from other wireless equipment may be a concern. It can be configured using either 12-way dipswitch coding or encrypted coding with over 16 million code combinations.

With an operating range of up to 400 metres line-of-sight under ideal conditions, the MCT91501 is well suited to applications such as automatic gates, commercial doors and shutters, pumps, lighting and industrial equipment when paired with a compatible Elsema MCR915 receiver.

Includes:

• Genuine Elsema 915MHz Handheld Transmitter

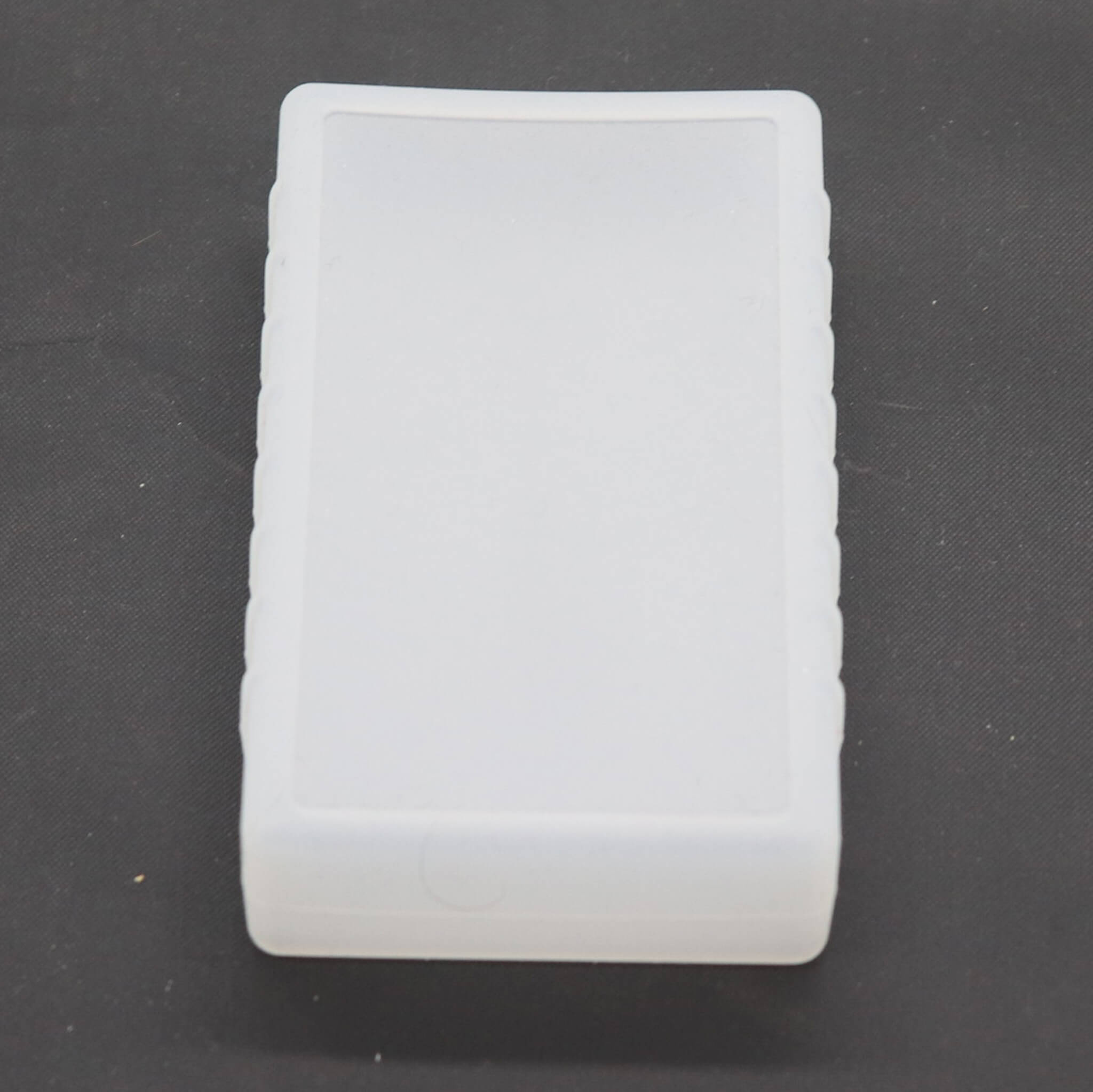

• 1 x Silicone Cover
• 1 x  9V Alkaline Battery
• Programming Instructions

Key Features:

• 1-button control – Designed for a single remote-controlled function.
• 915MHz Multicode system – Compatible with Elsema MCR915 Series receivers.
• Dual coding options – Use traditional 12-way dipswitch coding or encrypted coding for higher-security installations.
• Frequency hopping technology – Helps maintain reliable communication in electrically noisy or interference-prone environments.
• Long operating range – Up to 400 metres line-of-sight under ideal conditions.
• Low battery indication – Flashing LED indicates when the battery requires replacement.
• Industrial design – Designed for commercial and industrial remote-control applications.
• Protective silicone cover included – Helps protect the transmitter during everyday use.

Compatible with:

• MCR91501R
• MCR91502R
• MCR91502P
• MCR91502PT
• MCR91504R
• MCR91504RE
• MCR91508R
• MCR91508SS
• MCR91508POS
• MCR91512R
• MCR91516R
• MCR91516SS

Ideal Applications

• Automatic gates and access control
• Commercial and industrial doors
• Roller shutters
• Pumps and irrigation equipment
• Lighting control
• Alarms and security equipment
• Machinery start/stop or single-function control
• Industrial automation systems

Technical Specifications:

Downloads:

Frequently Asked Questions:

What is the primary function of the Elsema MCT91501 Remote?

The MCT91501 is a high security, industrial remote control transmitter.  They use 915MHZ Multicode Technology (MCT) to wirelessly operate receivers for applications such as Automatic Gates, Garage Doors, Commercial Shutters and Industrial Machinery.

What is Fast Frequency Hopping and how does it benefit me?

Fast Frequency Hopping (FFH) is a technology often used in military and medical equipment that allows the transmitter to jump between different frequencies.  This prevents interference or jamming from other electronic devices, ensuring the remote works reliably even in high noise environments.

What is the typical operating range of the MCT91501?

The operating range is approx. 150-200 meters.  However, by connecting an external antenna such as the ANT915S to the receiver, the range can be extended to over 350 metres.

Are the MCT91501 durable enough for industrial use?

Yes, they are engineered for industrial environments.  It features a rugged casing and is supplied with a protective silicone cover to withstand the harsh conditions of worksites and warehouses.
