Elsema Gigalink 433.92Mhz 4 Ch Receiver and Enclosure –...
$0.00
10 in stock
4-Channel 433Mhz Gigalink Receiver with Relay Output

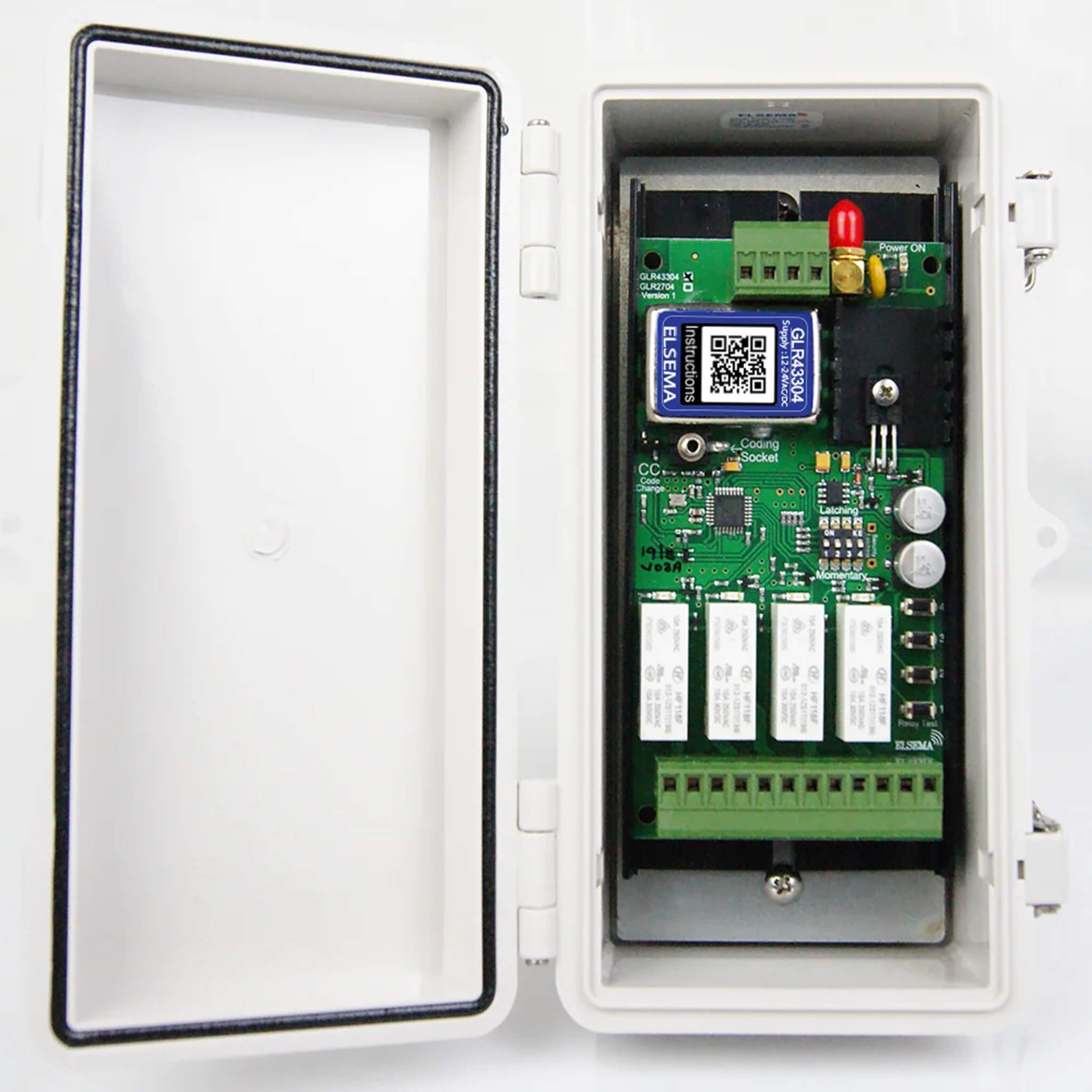

The Elsema GLR43304E is a robust four-channel Gigalink® receiver designed for industrial, commercial, and outdoor automation systems where durability and performance are essential. Encased in an IP-rated weatherproof enclosure, this model is ideal for applications exposed to dust, moisture, and harsh environmental conditions, while still delivering exceptional reliability and long-range control.
What’s Included:
- 1 × Brand New Genuine GLR43304
- 1 x Weather Proof Enclosure with Quick Mount
- 1 x Gigalink Coding Cable
- Step-by-step Wiring Programming Instructions
Key Features:
- Four independent Channels: each with relay outputs rated at 8A @240VAC
- Weatherproof Enclosure: Protects against dust and moisture for outdoor use.
- All channels can operate simultaneously
- Secure Gigalink Technology: encrypted 32-bit coding with over 4 billion combinations
- Unlimited transmitter Storage: scalable for large systems
- Selectable Output Modes: momentary, latching, security latching
- Long Range Performance: up to 350m line-of-sight with compatible transmitters
- Crystal-controlled stability: for reliable, interference-resistant operation
- Australian Compliance: Meets local frequency regulations for Australia*
Compatible with:
- GLT43301
- GLT43302
- GLT43304
- GLT43308
Ideal Applications:
- Automatic gate control
- Security systems
- Industrial and commercial automation
- On/off control for lighting and machinery
Technical Specifications:
| Specifications | |
| Frequency | 433.920MHz |
| Code Type | Encrypted Code |
| Body Type | Receiver |
| Number of Channels | 4 |
| Enclosure | Weather Proof Enclosure |
| Size | 160 x 120 x 55mm |
| Power Supply | 12-24 Volts AC or DC |
| Current Consumption | 16mA standby at 12VDC |
| Connection | Screw type terminal block |
| Output | Four change over relay outputs, each rated at 8 Amps/ 240Volts |
| Range | Up to 350m in clear line of sight |
| Warranty | 12 Months Manufacturers Warranty |
