Merlin M842S Remote Control

Replacement For ProLift 230T and 430R Garage Door

Features:

• Genuine Merlin Legacy Green Remote
• Advanced Security: The M842S comes equipped with rolling code technology improving the security of your garage door.
• User-Friendly Design: The remote boasts a compact build and easy-to-use buttons, fitting nicely in your hand for swift use.
• Multiple Functionality: Program up to 4 different garage door openers or accessories, making it the perfect choice for households with multiple garage doors.
• Extended Range Functionality: Benefit from a dependable range enabling you to open your garage door from afar, providing ease as you approach your house.
• Complies with Australian Laws for Lithium Coin Batteries
• Free Shipping Australia-Wide*
• 2 Years Manufacturers Warranty*

Compatibility:

The Merlin M842S remote is compatible with the below Merlin Garage Door Openers and remotes.

REMOTES

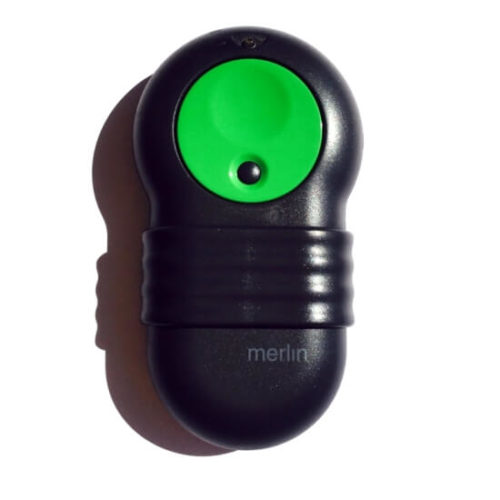

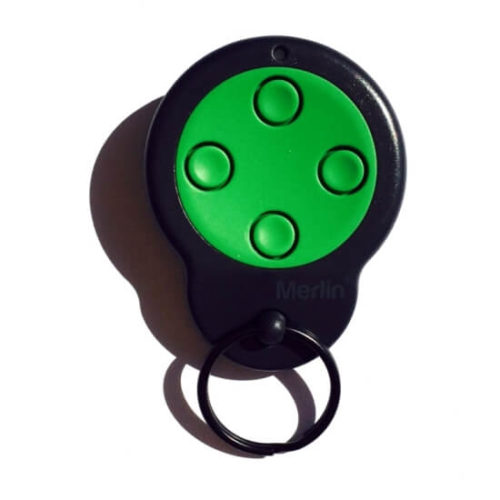

Merlin M832	Merlin M842 (older design with twist access to battery)	Merlin M844

The Merlin M842 Remote, often referred to as the Merlin 230T remote or Merlin 430R Remote in the industry, is made to work with the Merlin Prolift 230T and 430R Garage Door Openers produced from 2001 to 2007. In this series, two other remotes—M832 and M844—were introduced; however, the Manufacturer has since discontinued them. Furthermore, the M842 Remote can also be used effectively with the Merlin M-530 and M-532 standalone receivers.

Frequently Asked Questions (FAQs):

How do I program the Merlin M842 Remote?

Programming instructions can be found under the “Coding” Tab.

What batteries does the Merlin M842S Remote use?

The remote is powered by a CR2032 battery, which is easily replaceable and widely available. Click on this link to Purchase a Merlin M842 Battery Replacement.

Can I use the Merlin M842 Remote with more than one garage door?

Yes, The Merlin M842RS has two (2) buttons on the remote which means that you can pair this remote up to two (2) devices if they are compatible with this remote. If you would like more information on whether you can use this device on your garage door or gate CONTACT US today.

What should I do if my remote stops working?

If your remote stops working, first check the battery. If it’s not the battery, try reprogramming the remote. If the issue still persists CONTACT US today.

Are all Merlin remotes compatible?

The answer is no. Merlin remotes do not work with every model. The company has improved its technology over the years for better features and security. If you are not sure which remote works with your garage door opener, please contact us.

Is there a wall bracket included with the Merlin M842?

Yes, the Merlin M842 comes with a removable wall bracket clip. This allows for convenient storage on a wall if desired, but the clip can be removed for keyring use

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

Remote Programming Prolift M430R and 230T

See below for where to find the LEARN Button on your motor model or receiver.

To learn a remote to activate the opener:

• Press the LEARN button for 1-2 seconds, until the courtesy lamp begins to flash slowly.
• Press the desired remote button, wait 1 second, press the desired remote button again. The courtesy lamp will stop flashing once learning is complete.

To learn a remote to activate both opener and lamp:

• Press the learn button for 1-2 seconds, until the courtesy lamp begins to flash slowly.
• Press the desired remote button for control of the opener, wait 1 second, press the desired remote button for control of the courtesy lamp. The courtesy lamp will stop flashing once learning is complete.

To delete all remotes from the opener’s memory

Note:  This device has a maximum of 20-25 wireless controls that can be learned to the opener (each button = 1 control).  Once the memory is full the earliest device programmed will be deactivated to allow for a new device.

• Press and hold the learn button for eleven seconds, until the courtesy lamp stops flashing. After six seconds it will flash fast as a warning.  If you release the learn button during this warning period, then the memory will not be wiped.

M430R Learn Button

The learn button is a red learn button under the red control panel cover on the front face of the opener.

230T Learn Button

The learn button is on the underside of the opener inside the lamp cover.  Remove the lamp cover by turning the catch on its underside.  Remove the green control panel cover to expose the setup controls.  Identify the red learn button.

Merlin M532 Receiver

The learn button is the small circle at the base of the large circle found on the receiver.

Note:  If you have a a receiver without the outside cover ie M530.  The Learn Button will be the bottom button on the green receiver card.
