Elsema 151 Antenna High Gain – ANT151M
$199.95
10 in stock
Elsema ANT151M High Gain Antenna – 151MHz
The Elsema ANT151M High Gain Antenna is designed to deliver superior signal performance and extended communication range for wireless systems operating on the 151MHz frequency band. Perfectly tuned for use with FMT151 transmitters and FMR151 receivers, this antenna ensures strong, clear, and reliable connectivity in even the harshest environments.
Includes:
- Antenna – 100cm Long
- 3.6 metres of coaxial cable terminated with a PL259 plug
- Mounting Bracket
The Elsema 151 Antenna High Gain – ANT151M is a premium quality Antennas from the trusted brand Elsema, designed for excellent performance and reliability. This item is currently and ready for immediate dispatch from our Australian warehouse. When you order from Retro Remotes, you’re choosing an Australian-owned business that offers competitive pricing and free, fast shipping to anywhere in Australia. For easy reference when matching parts, the product SKU is 58808. Secure your Elsema 151 Antenna High Gain – ANT151M today with confidence!
Key Features
-
Genuine Elsema Product – tuned for 151MHz band
-
Optimised for FMT151 transmitters & FMR151 receivers
-
High gain (3.5dBi) for extended range and improved signal quality
-
Durable stainless steel construction for long-term reliability
-
Weatherproof design – built for outdoor and industrial use
-
Universal mounting bracket for wall or roof installation
-
3.6m coaxial cable included – pre-terminated with PL259 plug
Ideal Applications:
- Mining & Heavy Industry – Reliable long-range communication
- Industrial & Commercial Sites – Consistent performance in rugged environments
- Remote Control Systems – Extended range for automation and wireless control
- Outdoor Installations – Weatherproof design for year-round operation
Technical Specifications:
| Frequency | 149.5 to 152.5MHz |
| Tuned Bandwidth | 5MHz |
| Gain | 3.5dBi |

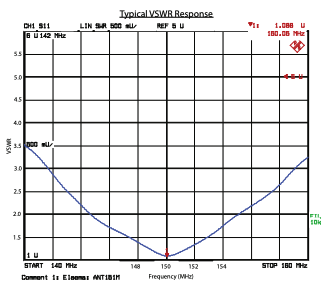

| VSWR (Return Loss) | < 1.5 : 1 over 5MHz |
| Impedance | 50 Ohms |
| Maximum Power | 25 Watt |
| Radiated Pattern | Omni Directional |

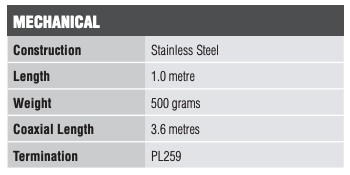

| Construction | Stainless Steel |
| Length | 1.0 metre |
| Weight | 500 grams |
| Coaxial Length | 3.6 metres |
| Termination | PL259 |
