Elsema 151 Antenna – ANT151S
$80.95
6 in stock
Elsema 151MHz Antenna – ANT151S

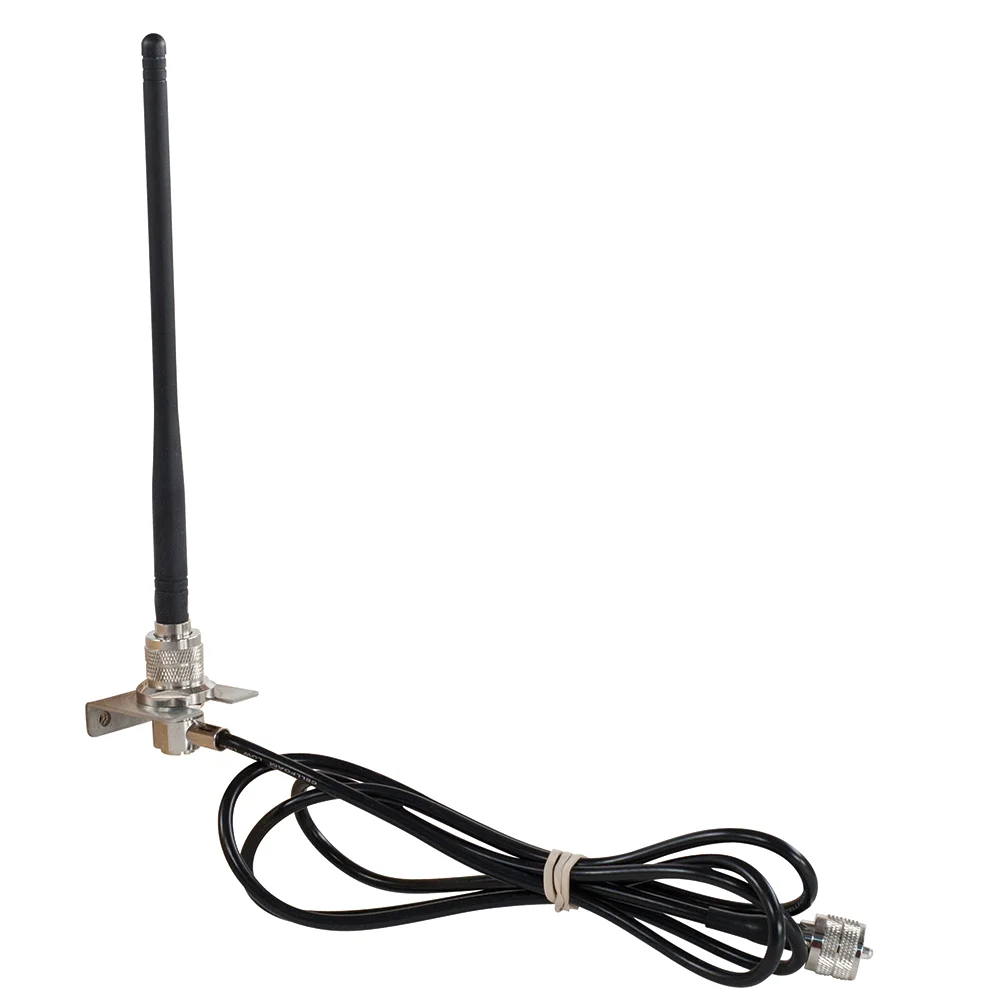

The Elsema ANT151S Flexible Antenna is purpose-built for 151MHz frequency band applications, delivering strong, stable, and interference-resistant communication. Specifically tuned for use with Elsema FMT151 transmitters and FMR151 receivers, this antenna ensures clear, reliable connectivity for mining, industrial, commercial, and remote control systems.
Includes:
- Antenna – 21cm Long
- 1.5 metres of coaxial cable terminated with a PL259 plug
- Mounting Bracket
Key Features:
- Genuine Elsema Product – tuned for the 151MHz frequency band
- Optimised for FMT151 transmitters & FMR151 receivers
- Compact 21cm flexible design – rugged, impact-resistant, and durable
- Weatherproof construction – reliable in outdoor & industrial conditions
- Strong signal performance – minimises interference & signal degradation
- PL259 termination – comes with 1.5m coaxial cable for easy setup
- Suitable for mining, industrial, commercial & remote control applications
Ideal Applications:
- Mining and Heavy Industry Communication Systems
- Remote Control Applications for Machinery & Automation
- Industrial Sites Requiring Long-Range Wireless Reliability
- Commercial and Outdoor Environments with Harsh Conditions

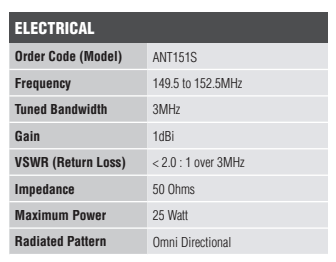

Technical Specifications:
| Frequency | 149.5 to 152.5MHz |
| Tuned Bandwidth | 3MHz |
| Gain | 1dBi |

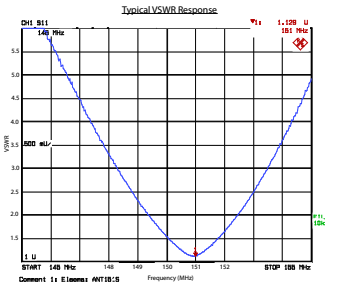

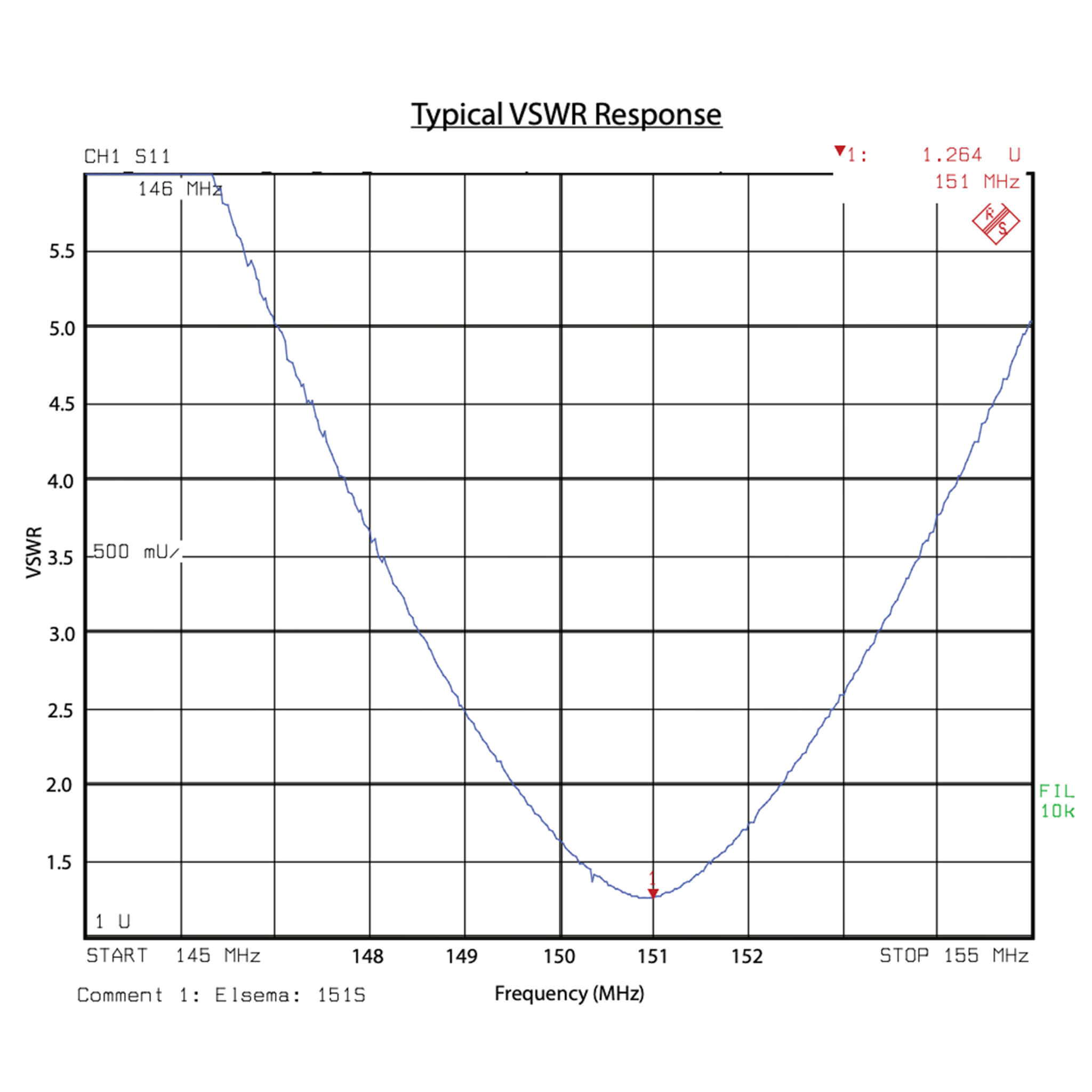

| VSWR (Return Loss) | < 2.0 : 1 over 3MHz |
| Impedance | 50 Ohms |
| Maximum Power | 25 Watt |
| Radiated Pattern | Omni Directional |

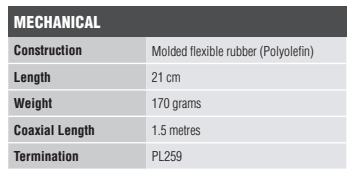

| Construction | Molded flexible rubber (Polyolefin) |
| Length | 21 cm |
| Weight | 170 grams |
| Coaxial Length | 1.5 metres |
| Termination | PL259 |
| Warranty | 12 Months Manufacturers Warranty |
