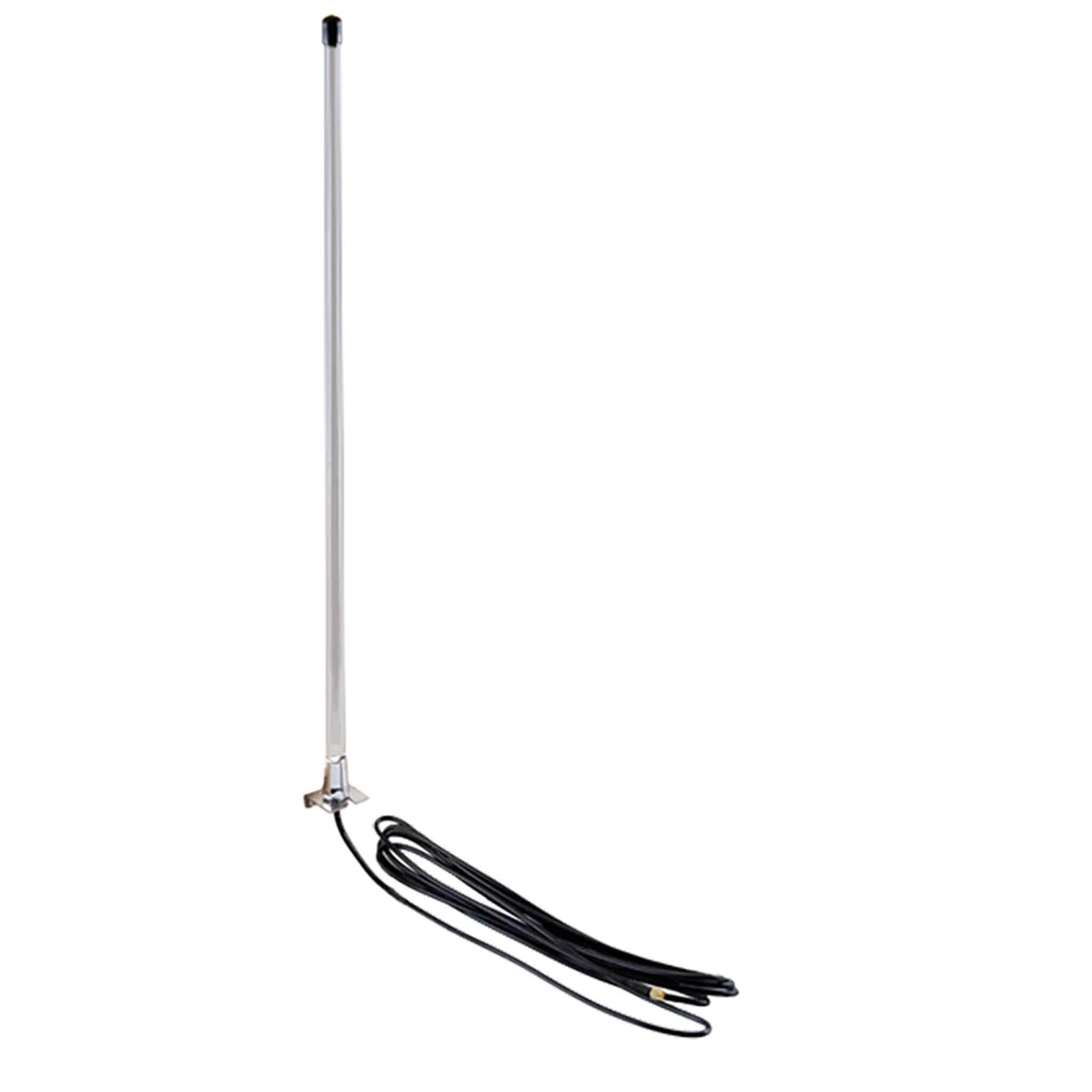

Elsema 915 Antenna – ANT915M
$144.95
12 in stock
High-Gain 915MHz Antenna for Extended Wireless Communication
The Elsema ANT915M is a 65cm ground-independent colinear antenna designed to deliver outstanding performance for 915MHz wireless systems. With a high gain of 6.5 dBi and an omnidirectional radiation pattern, this antenna extends signal range, enhances connectivity, and ensures seamless performance across industrial, commercial, and residential applications.
Includes:
- Low Profile Antenna – 65cm Long
- 3.6 metres of low loss coaxial cable terminated with an SMA connector
- Mounting Bracket
The Elsema 915 Antenna – ANT915M is a premium quality Accessories from the trusted brand Elsema, designed for excellent performance and reliability. This item is currently and ready for immediate dispatch from our Australian warehouse. When you order from Retro Remotes, you’re choosing an Australian-owned business that offers competitive pricing and free, fast shipping to anywhere in Australia. For easy reference when matching parts, the product SKU is 58811. Secure your Elsema 915 Antenna – ANT915M today with confidence!
Key Features:
- Genuine Elsema Product – tuned for the 915MHz band
- High gain (6.5 dBi) – maximises range and signal strength
- Ground-independent colinear design – no Earth grounding required
- Omnidirectional radiation pattern – 360° coverage
- Low VSWR – minimises reflection and signal loss
- 3.6m low-loss Cellfoil coaxial cable included
- SMA connector for stable and secure connection
- Universal mounting bracket for easy wall/roof installation
- Rugged, reliable design – suitable for industrial and outdoor use
Ideal Applications:
- Remote Control & Automation – extend range for gates, doors, and access systems
- Industrial Automation – reliable communication for monitoring and control systems
- IoT & Wireless Networking – long-range connectivity for smart devices and sensors
- Telemetry & Monitoring – secure and stable signal for data transmission systems
Technical Specifications:

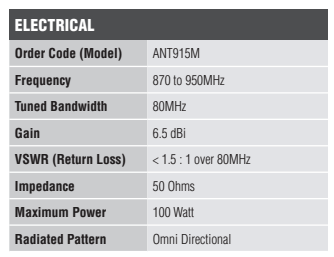

| Frequency | 870 to 950MHz |
| Tuned Bandwidth | 80MHz |
| Gain | 6.5 dBi |

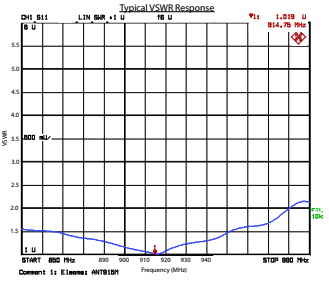

| VSWR (Return Loss) | < 1.5 : 1 over 80MHz |
| Impedance | 50 Ohms |
| Maximum Power | 100 Watt |
| Radiated Pattern | Omni Directional |

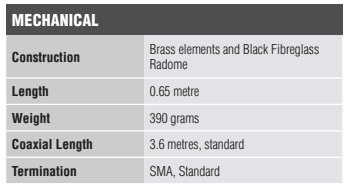

| Construction | Brass elements and Black Fibreglass Radome |
| Length | 0.65 metre |
| Weight | 390 grams |
| Coaxial Length | 3.6 metres, standard |
| Termination | SMA, Standard |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Additional information
| Weight | 0.25 kg |
|---|---|
| Brand | |
| UPC | |
| Warranty |
