Elsema 915 Antenna 190mm – ANT915S
$76.95
88 in stock
High-Performance 915MHz Antenna for Reliable Wireless Communication
The Elsema ANT915S is a state-of-the-art, ground-independent antenna designed for superior performance in 915MHz frequency applications. With a compact 190mm (19cm) low-profile design, this antenna provides strong, reliable, and interference-resistant wireless communication for Multicode receivers, IoT devices, automation systems, and industrial controllers.
Includes:
- Low Profile Antenna – 19cm Long
- 3.6 metres of low loss coaxial cable terminated with an SMA connector
- Mounting Bracket
Key Features:
- Optimized for 915MHz Band – Perfect for Multicode receivers and other wireless devices.
- 4dBi High Gain – Delivers extended range with a low angle of radiation.
- Ground-Independent Design – Reliable performance without requiring negative grounding.
- Durable N-Type Connector Base – Low signal loss and weatherproof for outdoor use.
- Removable Whip Antenna – Easy to replace or upgrade when required.
- 3.6m Low-Loss Cellfoil Coaxial Cable – Ensures clean signal transmission.
- SMA Connector – Provides a secure and stable connection to your receiver.
- Universal Mounting Bracket Included – Easy wall or roof installation.
- Compact & Rugged Build – Only 190mm long, ideal for tight or discreet spaces.
Ideal Applications:
- Wireless Remote Control Systems – Boosts signal range for gates, garage doors, and automation devices.
- Industrial Automation & Monitoring – Reliable connectivity for controllers, sensors, and equipment.
- IoT & Smart Devices – Supports efficient wireless communication for smart homes and businesses.

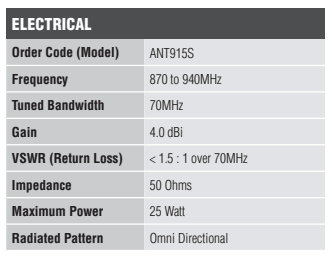

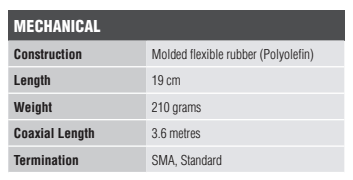

Technical Specifications:
| Frequency | 870 to 940MHz |
| Tuned Bandwidth | 70MHz |
| Gain | 4.0 dBi |

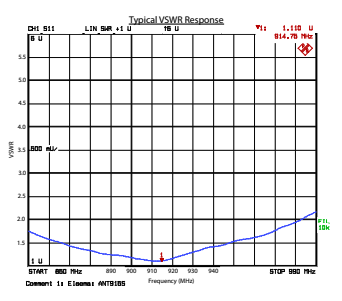

| VSWR (Return Loss) | < 1.5 : 1 over 70MHz |
| Impedance | 50 Ohms |
| Maximum Power | 25 Watt |
| Radiated Pattern | Omni Directional |
| Construction | Molded flexible rubber (Polyolefin) |
| Length | 19 cm |
| Weight | 210 grams |
| Coaxial Length | 3.6 metres |
| Termination | SMA, Standard |
| Warranty | xv12 Months Manufacturers Warranty |
