Elsema Photoelectric Through Beam Sensor – PE24
$99.95
3 in stock
Elsema Photoelectric Beam Sensor
The Elsema PE24 Photoelectric Through-Beam Sensor is a high-performance safety accessory designed for automatic gates, garage doors, boom gates, and industrial automation systems. Using advanced infrared through-beam technology, it ensures reliable detection of vehicles, people, and objects—helping prevent accidents and property damage while keeping your automation system compliant with modern safety standards.
Includes:
- Genuine Through Beam Photoelectric Beam Sensor
- Transceiver
- Receiver
- Installation Instructions
Key Features:
- Genuine Elsema product – seamless compatibility with Elsema controllers
- Infrared through-beam technology for reliable obstruction detection
- 30m indoor / 10m outdoor range for versatile applications
- 12–24V AC/DC dual-voltage input
- Weatherproof IP66-rated housing with anti-UV protection
- Versatile relay output: N.C., N.O. & Common terminals
- Low standby power consumption – ideal for solar automation
- Terminal block wiring for secure installation
- False-alarm immunity for dependable performance
- Compact design: 87 × 59 × 38mm
Ideal Applications:
- Sliding & Swing Gates
- Garage & Overhead Doors
- Boom Gates & Warehouse Monitoring
- Conveyor Systems & Industrial Automation
- Alarm & Security Systems

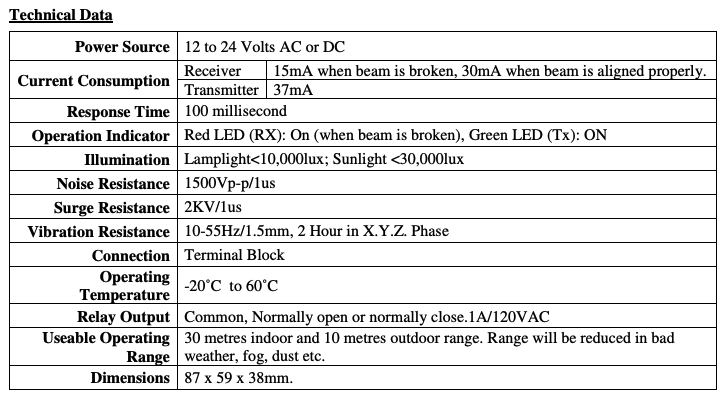

Technical Specifications:
| Power Source | 12 to 24 Volts AC or DC |
| Current Consumption | Receiver: 15mA when beam is broken, 30mA when beam is aligned properly
Transmitter: 37mA |
| Response Time | 100 millisecond |

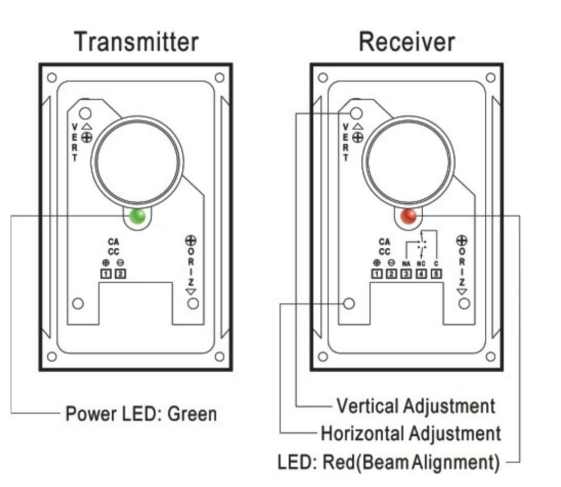

| Operation Indicator | Red LED (RX): On (when beam is broken), Green LED (Tx): ON |
| Illumination | Lamplight |
| <10,000lux; Sunlight ><30,000lux >Noise Resistance | 1500Vp-p/1us |
| Surge Resistance | 2KV/1us |
| Vibration Resistance | 10-55Hz/1.5mm, 2 Hour in X.Y.Z. Phase |
| Connection | Terminal Block |
| Operating Temperature | -20˚C to 60˚C |
| Relay Output | Common, Normally open or normally close.1A/120VAC |
| Useable Operating Range | 30 metres indoor and 10 metres outdoor range. Range will be reduced in bad weather, fog, dust etc. |
| Dimensions | 87 x 59 x 38mm. |
| Warranty | 12 Months Manufacturers Warranty |
Downloads:
Elsema PE24 Instruction Manual
