Features:

• Genuine Merlin Product
• Bright LED lights
• Quiet and Powerful Motor
• Improved Remote Range
• Adaptive Technology
• Security+ 2.0 technology with multiple frequency on encrypted rolling code.
• Automatic Close (optional extra)
• Safety Reversing System
• Automatic Force Sensing
• Manual Release
• Ventilation Mode
• 3 Year Manufactures Warranty*
• Free Shipping Australia-Wide*

Includes:

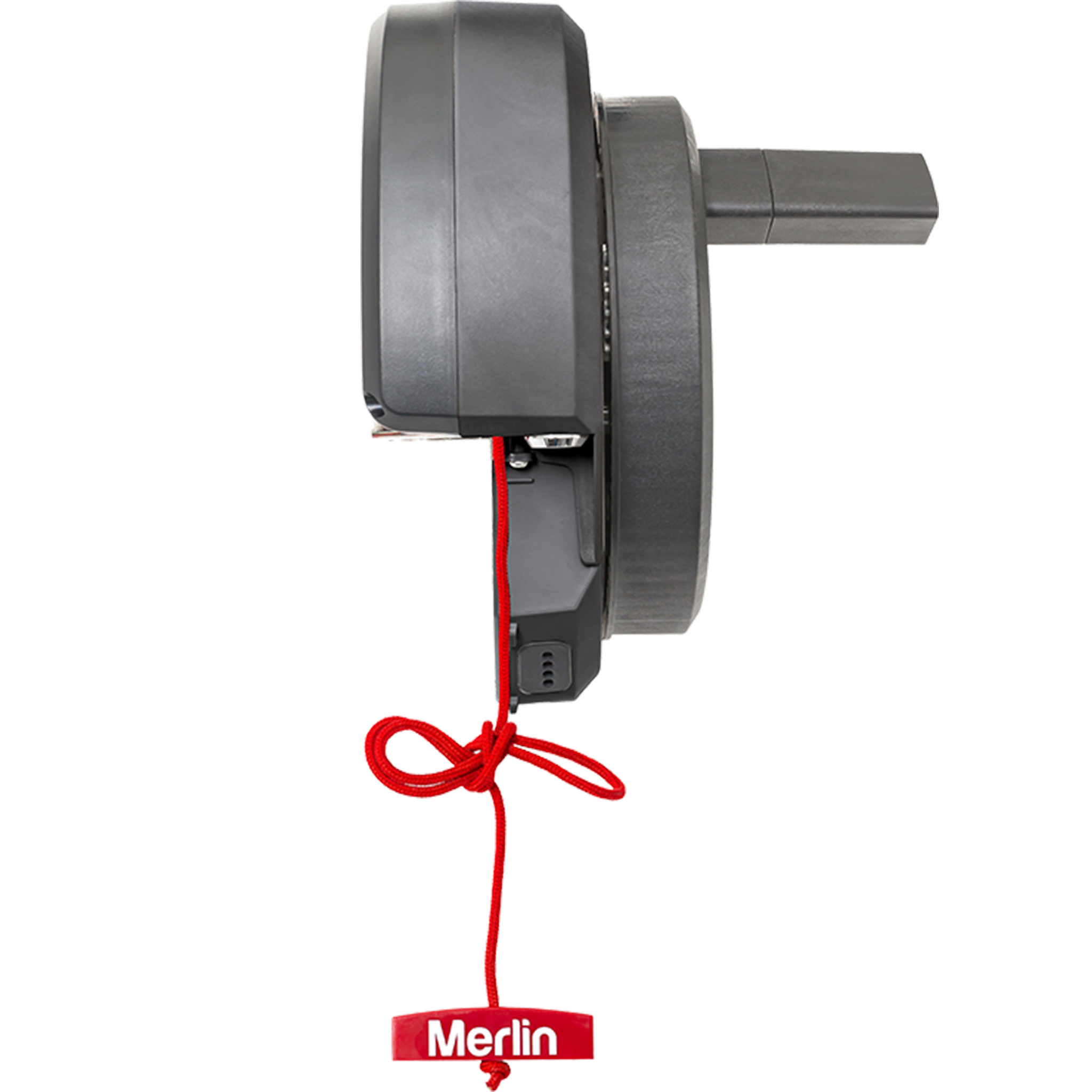

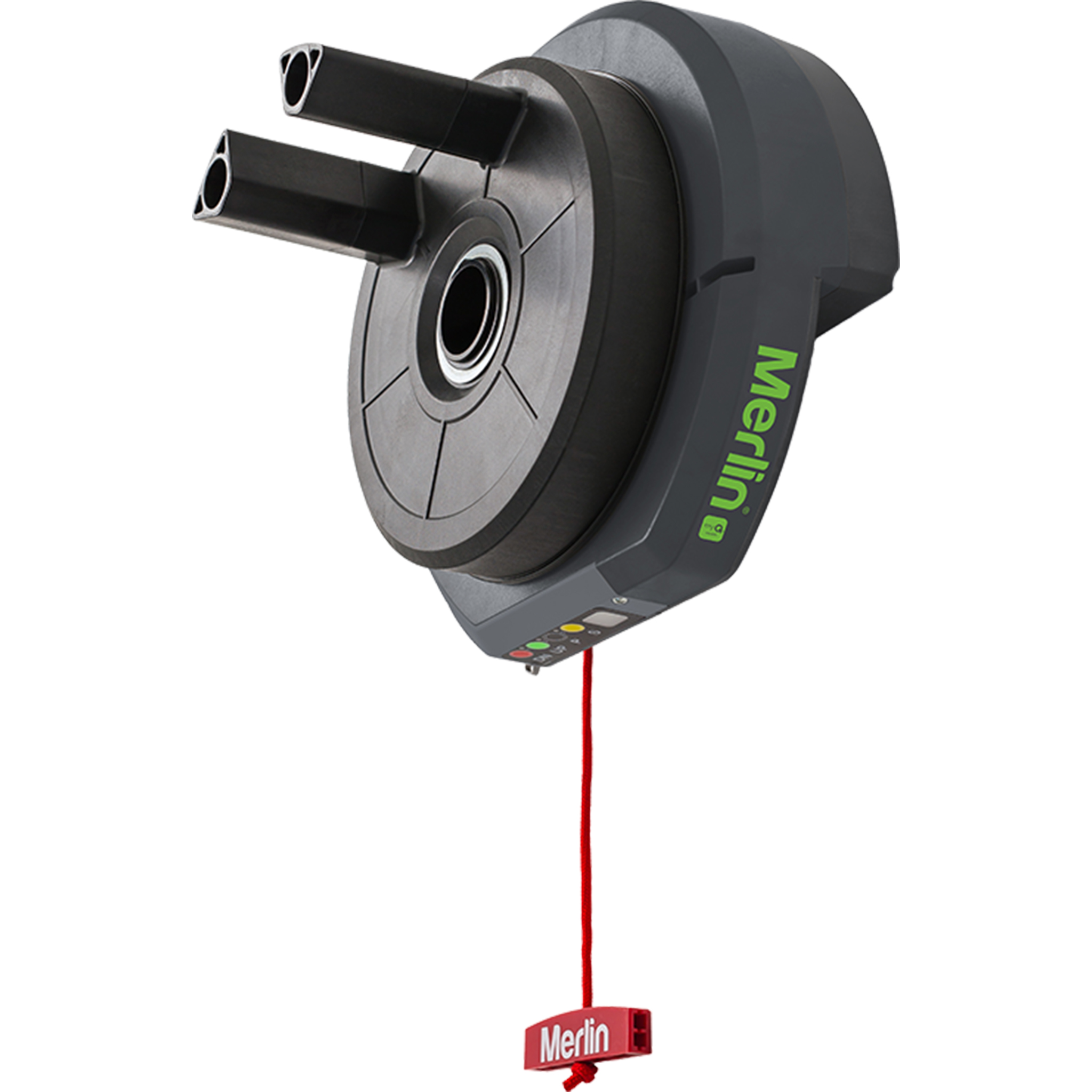

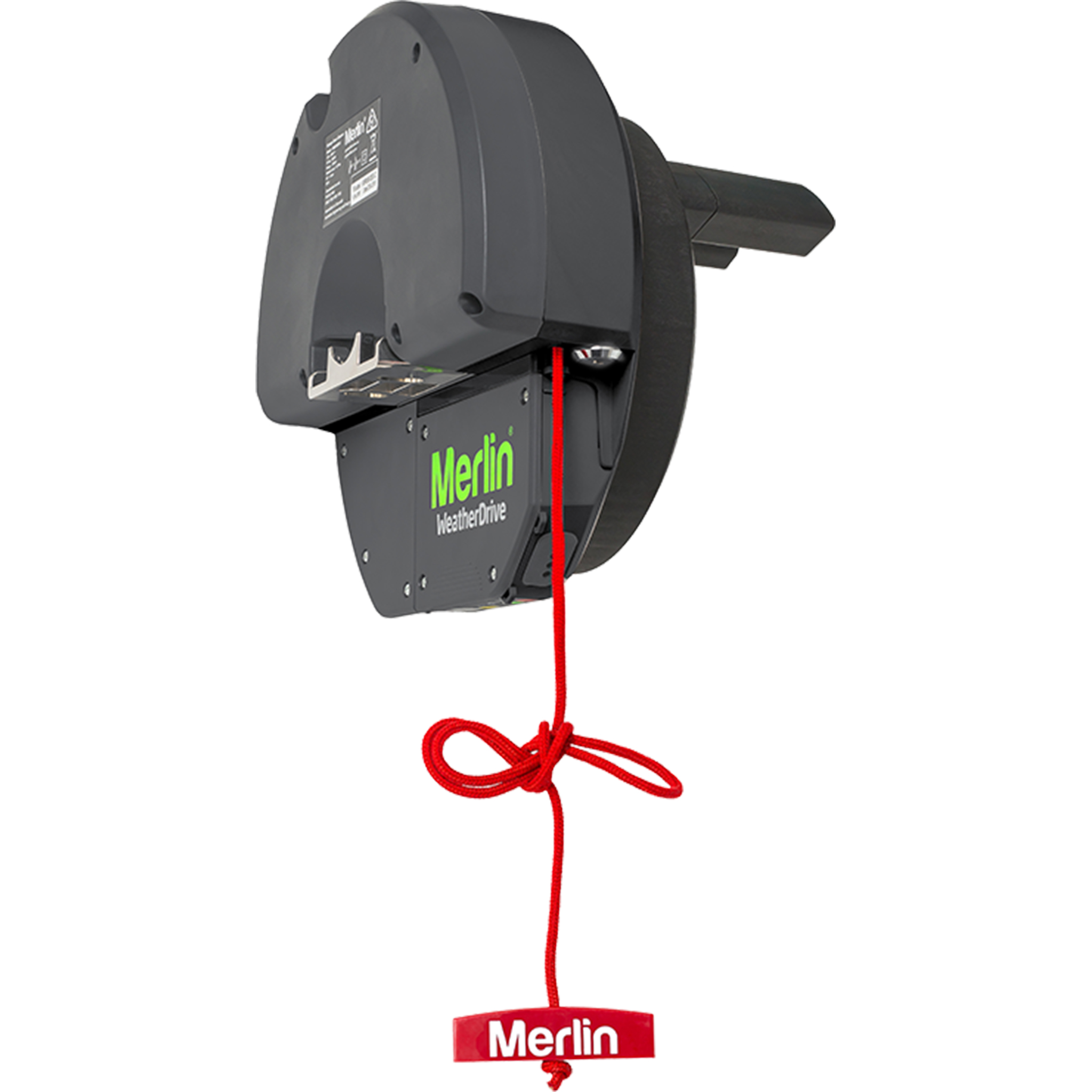

• 1 x Merlin Weatherdrive MR555MYQ opener
• 2 x Premium+ Four Button Remote Controls (E970M)
• 1 x Wireless Wall Button (E148M)
• Installation Accessory Pack
• 1 x Weight Bar
• Installation Instructions

*Warning:  The Manufacturers Warranty is contingent upon meeting their specific terms and conditions.  Typically, these conditions involve providing proof of installation by a qualified technician and maintaining a regular servicing history.  For detailed information regarding the terms and conditions applicable to this product, we recommend referring to the manual.

• IP34 housing
• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Minimum side room 40mm
• Rated door area up to 15m²
• Max door weight: up to 100kg
• Drum rotations: 5.5
• Max peak pulling force: 500 N
• 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
• Up to 64 memory registers
• Courtesy light: LED
• Noise rating 1M: 51DB
• Soft start/stop function
• Maximum lifting under spring tension = 15kgs
• Suitable for steel spring balanced doors
• Door opening time: 14 seconds (regular), 18 seconds (slow)
• Door closing time: 14 seconds (regular), 18 seconds (slow)
• Based on a 2.3m high door
• Door height: 5.5m, 3.0m, 2.3m
• Door width: 2.7m, 5.0m, 5.5m
• Single Dwelling

Merlin MR555MYQ Installation Instructions
